Agitation Washers
Agitation Washers

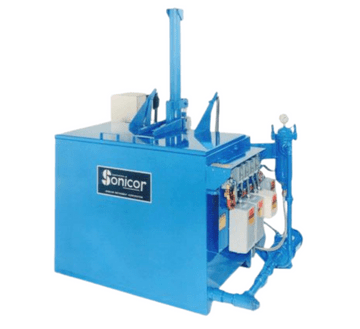

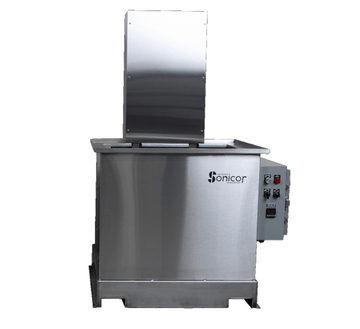

Sonicor “AW” series is an agitation cleaning system (Agitation Washers) that utilizes a multiple-technology approach to address each critical parts cleaning application. Contaminants on parts and in flow-thru internal surfaces are removed by the aggressive action of agitation in the heated aqueous detergent. Parts with a more complex geometry however may include internal surfaces that can trap contaminants and are not effectively cleaned by agitation alone. These hard to clean areas are penetrated by the optional Sonicor “BandScanner” sweep-frequency ultrasonics to complete the job. Our Agitation Washers are designed to deliver superior cleaning performance, these state-of-the-art Ultrasonic Cleaning Systems utilize the power of ultrasonic technology to remove dirt, grime, and contaminants from a wide range of objects.
Standard Features:
- All stainless tank fabrication
- Stainless immersion heaters
- Low liquid level protection
- Pneumatic lift platform
- Auto-lift rear hinged cover
Available Options:
- Non-standard input power configurations
- Heat system, with stainless immersion heaters, digital temperature controllers & thermal insulation
- Continuous oil sweep/removal systems
- Circulating filter & turbo-filter combo systems
- Thermal insulation
- Auto-reset digital cycle timers
- 27, 40, or 68 kHz operation (40 kHz is the industry standard and factored into the base price. 27 kHz and 68 kHz builds incur a varying surcharge.)
- 220/240 or 440/480v operation
50 Gallon Agitation Washer
- Model AW-20
- Tank I.D. (LRxFBxD) 20″x23″x26″
- Tank O.D. (LRxFBxH) 23″x32″x68″
- Sonic Power 1800w, 40KHz
- Heat 6KW (optional)
- Basket I.D. 16″x15″x6″
- Max Load 150 Lbs
- Input Power 3PH, 15A
75 Gallon Agitation Washer
- Model AW-30
- Tank I.D. (LRxFBxD) 30″x23″x26″
- Tank O.D. (LRxFBxH) 33″x32″x68″
- Sonic Power 2400w, 40KHz
- Heat 6KW (optional)
- Basket I.D. 26″x15″x6″
- Max Load 150 Lbs
- Input Power 3PH, 15A
100 Gallon Agitation Washer
- Model AW-40
- Tank I.D. (LRxFBxD) 40″x23″x26″
- Tank O.D. (LRxFBxH) 43″x32″x68″
- Sonic Power 3000w, 40KHz
- Heat 9KW (optional)
- Basket I.D. 36″x15″x6″
- Max Load 150 Lbs
- Input Power 3PH, 22A
130 Gallon Agitation Washer
- Model AW-50
- Tank I.D. (LRxFBxD) 50″x23″x26″
- Tank O.D. (LRxFBxH) 53″x32″x68″
- Sonic Power 3600w, 40KHz
- Heat (optional)
- Basket I.D. 46″x18″x6″
- Max Load 150 Lbs
- Input Power 3PH, 29A
