Large Tanks

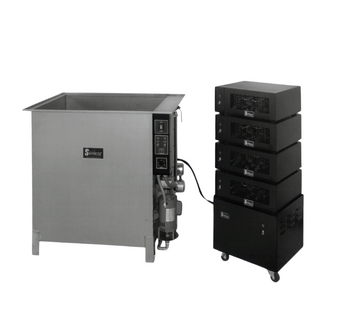

Large Ultrasonic Tanks
The Sonicor “IT” series offers the reliability of Sonicor “BandScanner” sweep-frequency ultrasonics, in a complete line of rugged, large capacity, industrial ultrasonic cleaning systems. These large tank systems are designed to fully address critical industrial parts cleaning applications with the power and design flexibility of our Sonicor ultrasonic generators and immersible ultrasonic transducers. The fully integrated heating and filtration systems that are included on each “IT” system, minimize the need for additional process equipment, allowing for easy system installation. Discover our line of rugged, large tanks, industrial ultrasonic cleaning systems for precision cleaning.
Standard Features:
- All stainless tank fabrication
- Peripheral tank drip-lip
- Copper/Brass pump/plumbing
- Stainless immersion heaters
- Thermal insulation
- Low liquid level protection
- Digital temperature controller
Available Options & Accessories:
- Stainless plumbing
- 230 to 480V upgrade (Standard on 475, 600, and 750 gallon models)
- Oil skimmer/separation systems
- Parts baskets and custom parts handling fixtures
- Auto-reset digital cycle timer
- 27, 40, or 68 kHz operation (40 kHz is the industry standard and factored into the base price. 27 kHz and 68 kHz builds incur a varying surcharge.)
130 Gallon Ultrasonic Tank
- Model IT-130
- Tank I.D. (LxWxD) 36″x24″x36″
- Capacity 130 Gallons
- Sonic Power 3600w, 40KHz
- Heat 12KW
- Transducer Configuration 3x IBE-1204/2210
- Input Power 220/240, 3PH, 42A
180 Gallon Ultrasonic Tank
- Model IT-180
- Tank I.D. (LxWxD) 48″x24″x36″
- Capacity 180 Gallons
- Sonic Power 4500w, 40KHz
- Heat 15KW
- Transducer Configuration 3x IBE-1504/2214
- Input Power 220/240, 3PH, 52A
200 Gallon Ultrasonic Tank
- Model IT-200
- Tank I.D. (LxWxD) 36″x36″x36″
- Capacity 200 Gallons
- Sonic Power 6000w, 40KHz
- Heat 18KW
- Transducer Configuration 4x IBE-1504/1515
- Input Power 440/480, 3PH, 31A
220 Gallon Ultrasonic Tank
- Model IT-220
- Tank I.D. (LxWxD) 60″x24″x36″
- Capacity 220 Gallons
- Sonic Power 6000w, 40KHz
- Heat 18KW
- Transducer Configuration 4x IBE-1504/2213
- Input Power 440/480, 3PH, 31A
260 Gallon Ultrasonic Tank
- Model IT-260
- Tank I.D. (LxWxD) 48″x36″x36″
- Capacity 260 Gallons
- Sonic Power 7500w, 40KHz
- Heat 24KW
- Transducer Configuration 5x IBE-1504/3208
- Input Power 440/480, 3PH, 42A
330 Gallon Ultrasonic Tank
- Model IT-330
- Tank I.D. (LxWxD) 60″x36″x36″
- Capacity 330 Gallons
- Sonic Power 9000w, 40KHz
- Heat 36KW
- Transducer Configuration 6x IBE-1504/3208
- Input Power 440/480, 3PH, 56A
475 Gallon Ultrasonic Tank
- Model IT-475
- Tank I.D. (LxWxD) 48″x48″x348″
- Capacity 475 Gallons
- Sonic Power 12000w, 40KHz
- Heat 45KW
- Transducer Configuration 8x IBE-1504/2211
- Input Power 440/480, 3PH, 72A
600 Gallon Ultrasonic Tank
- Model IT-600
- Tank I.D. (LxWxD) 60″x48″x48″
- Capacity 600 Gallons
- Sonic Power 15000w, 40KHz
- Heat 48KW
- Transducer Configuration 10x IBE-1504/2211
- Input Power 440/480, 3PH, 80A
750 Gallon Ultrasonic Tank
- Model IT-750
- Tank I.D. (LxWxD) 60″x60″x48″
- Capacity 750 Gallons
- Sonic Power 18000w, 40KHz
- Heat 60KW
- Transducer Configuration 10x IBE-1804/2811
- Input Power 440/480, 3PH, 100A
